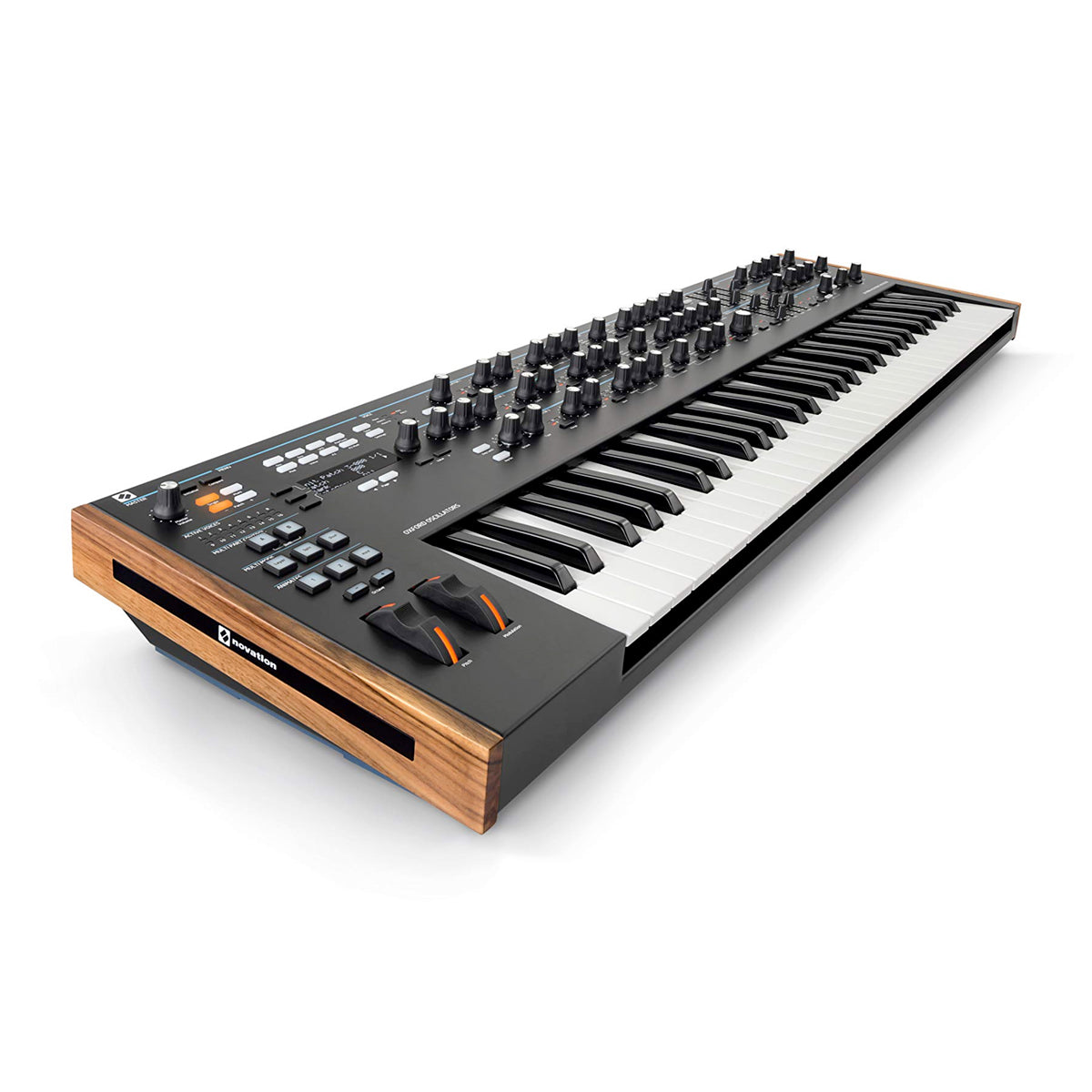

NOVATION SUMMIT Two-Part 16-Voice 61 Key Polyphonic Synthesizer

The Novation Summit is a flagship 16-voice, bi-timbral polyphonic synthesizer that combines the power of two Novation Peak engines into a premium 61-key performance keyboard. Built for sound designers, producers, and performers, the Summit delivers deep synthesis, warm analog tone, and extensive modulation options Ñ making it a true centerpiece for any modern studio or live setup.

Key Features

16-Voice Polyphony / Bi-Timbral Engine Ð Essentially two Peaks in one, capable of layering or splitting two patches.

Three Oxford Oscillators Per Voice Ð Per-voice digital FPGA oscillators for ultra-high-resolution waveform generation and FM synthesis.

Analog Dual Filters Ð Classic analog multimode filters per voice for rich, warm tone shaping.

Analog VCAs and Distortion Ð True analog signal path for overdrive and saturation.

Powerful Modulation Matrix Ð 16-slot modulation matrix with 22 sources and 54 destinations.

Comprehensive Effects Section Ð Studio-grade reverb, delay, chorus, and distortion with dedicated knobs.

61-Note Semi-Weighted Keyboard with Aftertouch Ð Premium keybed ideal for expressive playing.

Dual / Split / Layer Modes Ð Play two patches at once or create complex layered textures.

Arpeggiator and Animator Ð Add evolving movement and performance dynamics.

Full Hands-On Control Ð Over 50 physical knobs and buttons for real-time editing.

Deep Connectivity Ð MIDI In/Out/Thru, USB, CV modulation input, two pedal inputs, stereo outputs, and auxiliary audio input.

Patch Storage: 512 onboard user slots (plus factory presets).

Technical Specifications

Polyphony: 16 voices

Oscillators: 3 per voice (Oxford digital FPGA)

Filters: 2 analog multimode filters per voice (LP, BP, HP)

LFOs: 2 per part + dedicated amp envelope

Keyboard: 61-key semi-weighted with aftertouch

Arpeggiator: Yes, programmable

Effects: Reverb, Delay, Chorus, Distortion

Outputs: 2 _ stereo outputs, 1 _ headphone output

Inputs: External audio input for signal processing

MIDI I/O: In, Out, Thru

USB: Class-compliant MIDI over USB

CV Input: 1 _ 3.5 mm

Power Supply: External 12V DC (included)
