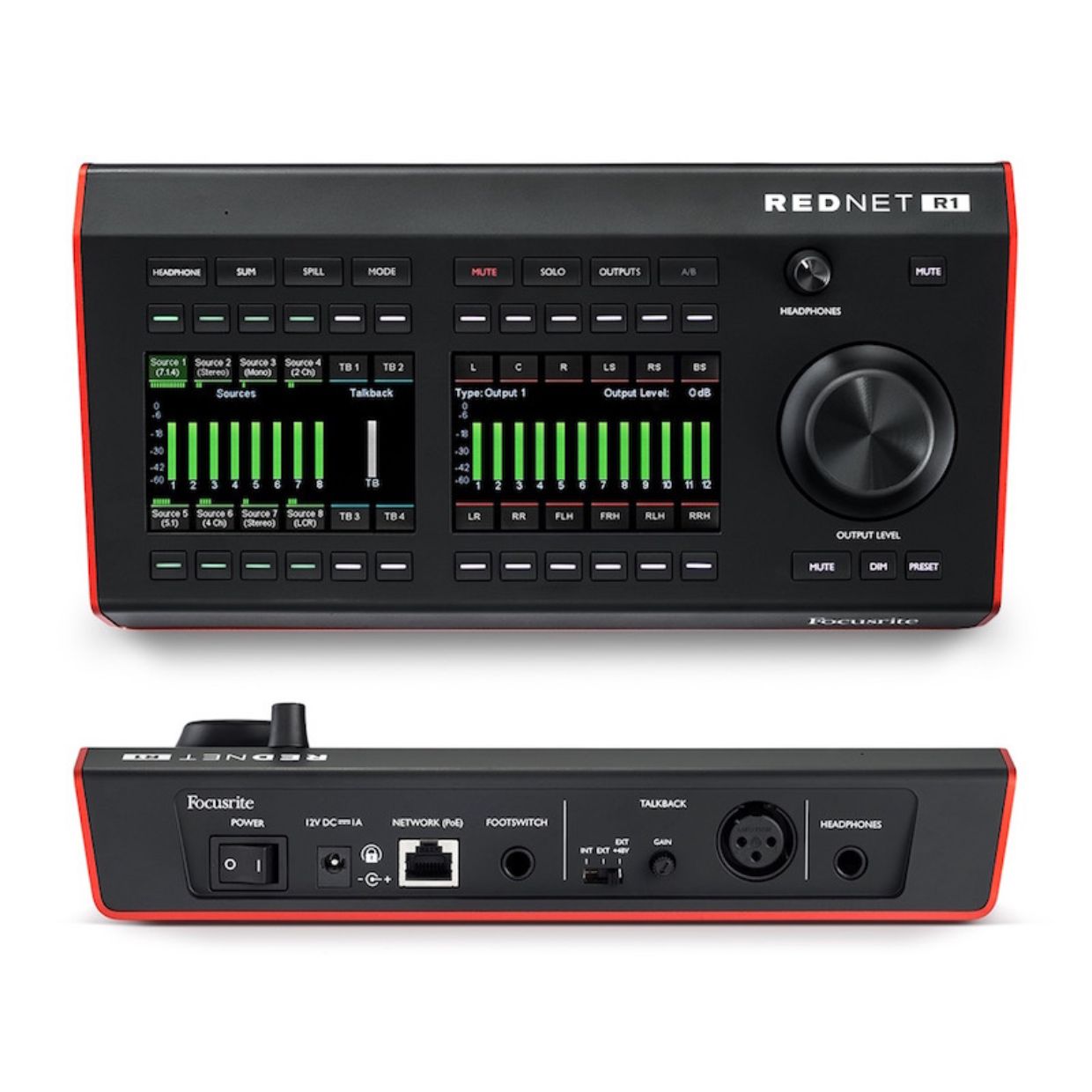

FOCUSRITE Pro RedNet R1 Desktop Remote Controller for Red Interfaces with PoE

Key Features

Seamless Red Interface Integration Ð Designed exclusively for use with Focusrite Red and RedNet interfaces via RedNet Control software.

Comprehensive Monitor Control Ð Manage up to 7.1.2 surround and immersive speaker setups, with individual speaker trim, solo, mute, and fold-down functions.

Flexible Source Selection Ð Switch instantly between multiple inputs, outputs, and monitoring presets.

High-Quality Headphone Output Ð Independent headphone control for artist or engineer monitoring.

Talkback Functionality Ð Built-in talkback mic and external mic input for communication with recording rooms or cue mixes.

Assignable Function Buttons Ð Six user-definable buttons for customized control (e.g., DIM, CUT, MONO, preset selection).

Bright, Clear TFT Display Ð Shows metering, routing, and volume levels at a glance.

Network-Powered Operation Ð Connects via Ethernet and powered through Power over Ethernet (PoE) Ñ no additional PSU needed.

Compact and Ergonomic Desktop Design Ð Perfect for control desks, post suites, and mixing workstations.

Technical Specifications

Compatibility: Red 4Pre, Red 8Pre, Red 8Line, Red 16Line, RedNet interfaces (via RedNet Control)

Maximum Monitor Configuration: Up to 12 channels (7.1.4 Atmos or 7.1.2 surround)

Headphone Output: __ TRS stereo jack

Talkback Mic: Integrated condenser with external mic input (__ TRS)

Network Interface: Gigabit Ethernet (Dante / RedNet connection with PoE)

Power: Power over Ethernet (IEEE 802.3af)

Display: Full-color TFT screen with encoder knob and function buttons

Control Software: RedNet Control 2 or later
