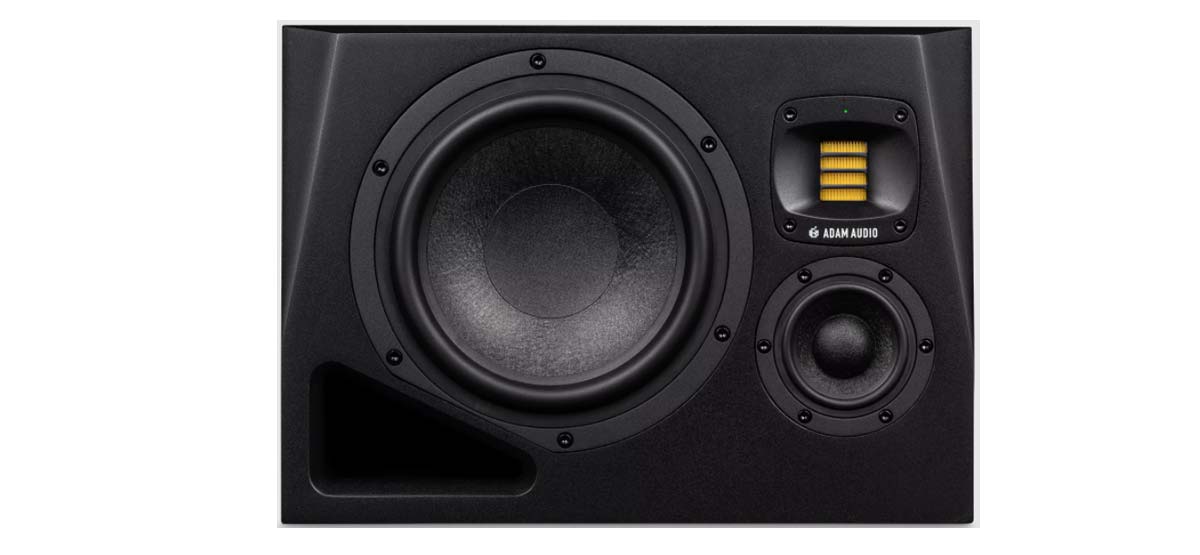

ADAM AUDIO A Series 8" 3-way Powered Studio Monitor (Left)

The A8H incorporates an 8-inch resonant Multi-Layer Mineral (MLM) fiber woofer, innovative midrange driver, and handmade precision X-ART tweeter, which together produce an ultra-wide frequency response.

Like the other members of the A Series family, the A8H gives you tremendous flexibility for fine-tuning the sound through rotatable HPS waveguide technology and onboard DSP. At home across a full range of audio applications in mid- to full-sized spaces, the A8H is the right choice when youÕre looking for the most detailed representation of your audio. German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
8Ó Woofer (Multi-Layer Mineral)
3.5_ DCH Midrange Driver
Total Peak Amp. Power: 340 W
Frequency Response @ -6 dB: 31 Hz Ð 45 kHz
Max. peak SPL per speaker at 1 m: 105 dB SPL. General Data
Display: Front panel multi-colour LED
Cabinet Design: Single front ported
Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
Power consumption (max, idle, sleep): 220 W, 15 W, 3.5 W
AC Input Voltage: 100 Ð 240 V, 50/60 Hz
Power Rating: 500 W max.
Operating Conditions: -10¡ C to +40¡ C (+14¡ F to +104¡ F); <75 % RH, non-condensing
Weight: 13.6 kg (30 lb)
Dimensions (Height x Width x Depth): 274 mm x 382 mm x 329 mm (10 3/4_ x 15_ x 13_)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: A8H loudspeaker, power cable, Quick Start Guide
Audio Input Connectors
Analog: XLR, RCA
Input Impedance: 9 kOhm / 3.3 kOhm
Max. Input Level: +19 dBu
Amplification
Woofer
Amplifier Type: PWM
Peak (10% THD, limiter deactivated): 250 W
RMS (1% THD, limiter deactivated): 200 W
Midrange
Amplifier Type: Class A/B
Peak (10% THD, limiter deactivated): 70 W
RMS (1% THD, limiter deactivated): 55 W
Tweeter
Amplifier Type: Class A/B
Peak (10% THD, limiter deactivated): 20 W
RMS (1% THD, limiter deactivated): 15 W
Control Options [via Network]
Networking Connector: RJ45
Connection Type: Ethernet
Communication Protocol: OCA using standard IP data
Control Software: A Control (Windows and MacOS available)
Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
Advanced Room Adaptation: 6 x PEQ, Level, Delay
Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference

Acoustics
Frequency Response @ -3 dB: 34 Hz Ð 41 kHz
Frequency Response @ -6 dB: 31 Hz Ð 45 kHz
Crossover Frequencies: 400 Hz, 3.0 kHz
Max. peak SPL per speaker at 1 m (sine bursts): 105 dB SPL
Max. peak SPL per speaker at 1 m (IEC-weighted noise): 116 dB SPL
Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (RMS): 104 dB SPL
Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (Peak): 107 dB SPL
Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS): 101 dB SPL
Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 104 dB SPL
Dolby DARDT max SPL in full space: 117 dB SPL
Dolby DARDT max SPL in full space (bass managed): 121 dB SPL
Drivers
Woofer
Basket Diameter: 8_
Voice Coil Diameter: 1.5_ (38 mm)
Cone Material: MLM
Midrange
Type: Dome Cone Hybrid (DCH)
Basket Diameter: 3.5_
Voice Coil Diameter: 1.3_ (33 mm)
Cone Material: MLM
Tweeter
Type: X-ART
Diaphragm Area: 4 inch_ (2420 mm_)
Equivalent Diaphragm Diameter: 2_ (56 mm)
Velocity Transform Ratio: 4 to 1
Diaphragm Weight: 0.17 g
Waveguide: HPS (rotatable)
Waveguide Dispersion: 120¡ horizontal, 70¡ vertical
Signal Processing
AD converter: 24-bit
Internal sample rate: 96 kHz
Delay range, resolution: 0 Ð 10 ms, 0.1 ms
Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters
Control Options [via Backplate]
Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
Level: -12 dB to +12 dB
Input Selection: Balanced, unbalanced
Voicings: Pure, UNR
Room Adaption:
Bass: +2, 0, -2, -4 dB
Desk: 0, -2, -4 dB
Presence: +1, 0, -1 dB
Treble: +1.5, 0, -1.5 dB
